G5-54 BEACON MACHINE Cummins QSK19 QSK38 QSK60 Injector Disassembly and Assembly Tool | Cummins QSK Injector Repair Kit

The G5-54 tool set is an industrial-grade mechanical overhaul system engineered exclusively for servicing high-pressure fuel injectors across heavy-duty Cummins QSK engine platforms. Specifically calibrated for QSK19, QSK23, QSK38, QSK50, and QSK60 engines, this heavy duty diesel injector overhaul tool features rigid vertical clamping fixtures and anti-rotation alignment plates that eliminate body deformation during nozzle cap nut removal. It reliably supports Bosch cross-reference assemblies including 1004135715 and 1001703328 without risking critical component distortion.

Constructed with high-strength alloy steel, this Cummins QSK19 QSK38 QSK60 injector disassembly and assembly tool incorporates specialized 3/4-inch drive reinforced wrenches rated for extreme breakout torques up to 450 N·m. By locking the multi-section injector body coaxially along its natural centerline, the fixture ensures precision reassembly and uniform internal pre-load. It is an indispensable asset for mining equipment rebuild centers, marine propulsion workshops, and power generation facilities requiring dependable, repeatable maintenance accuracy.

Technical & Service Advantages of G5-54 BEACON MACHINE

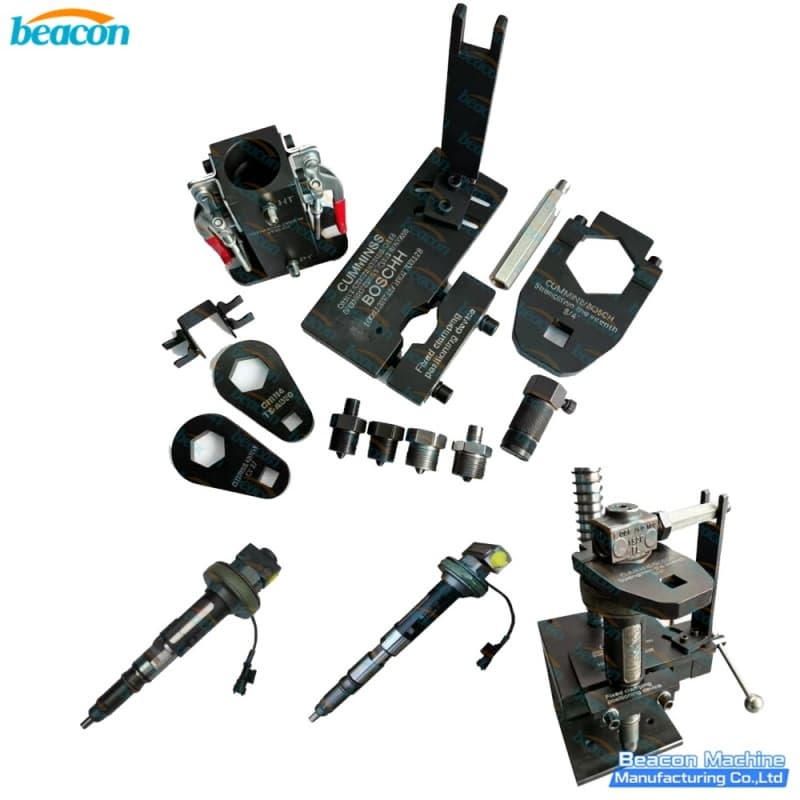

• Tailored for High-Horsepower QSK Platforms: The G5-54 Cummins QSK injector repair kit is customized specifically to service Cummins QSK19, QSK23, QSK38, QSK50, and QSK60 heavy-duty injectors, accommodating both Cummins and Bosch modular architectures.

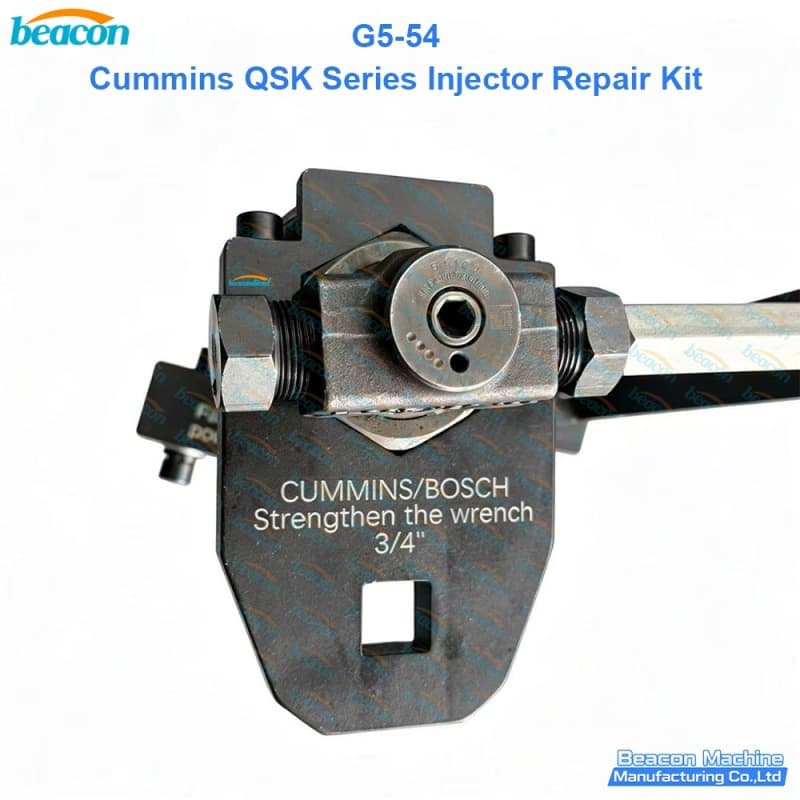

• Reinforced 3/4-Inch Drive Interface: Equipped with industrial 3/4" square-drive sockets and high-leverage wrenches capable of withstanding extreme breakout torque up to 450 N·m without rounded corners or jaw expansion.

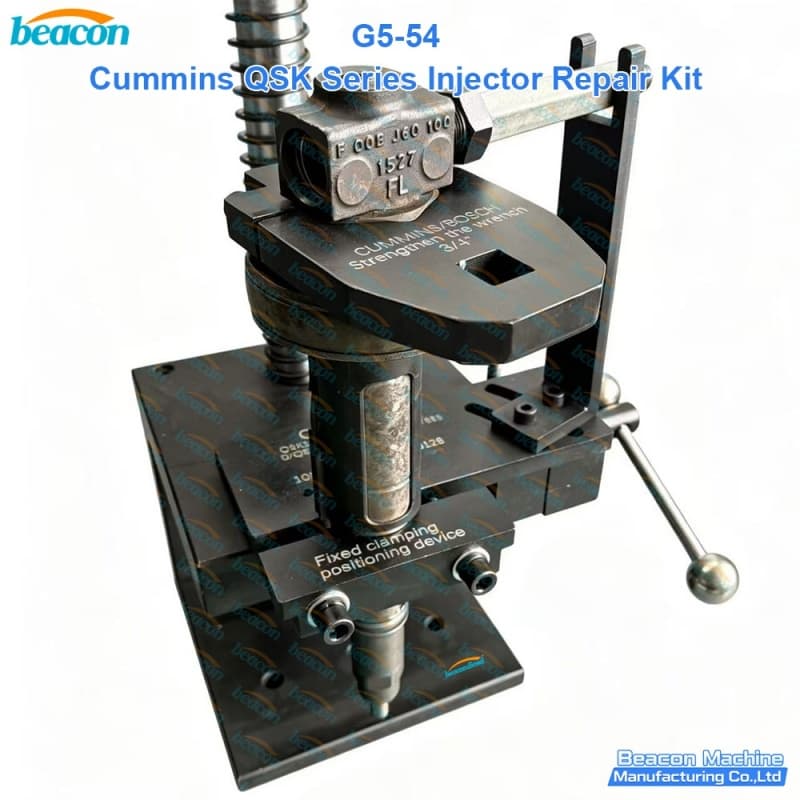

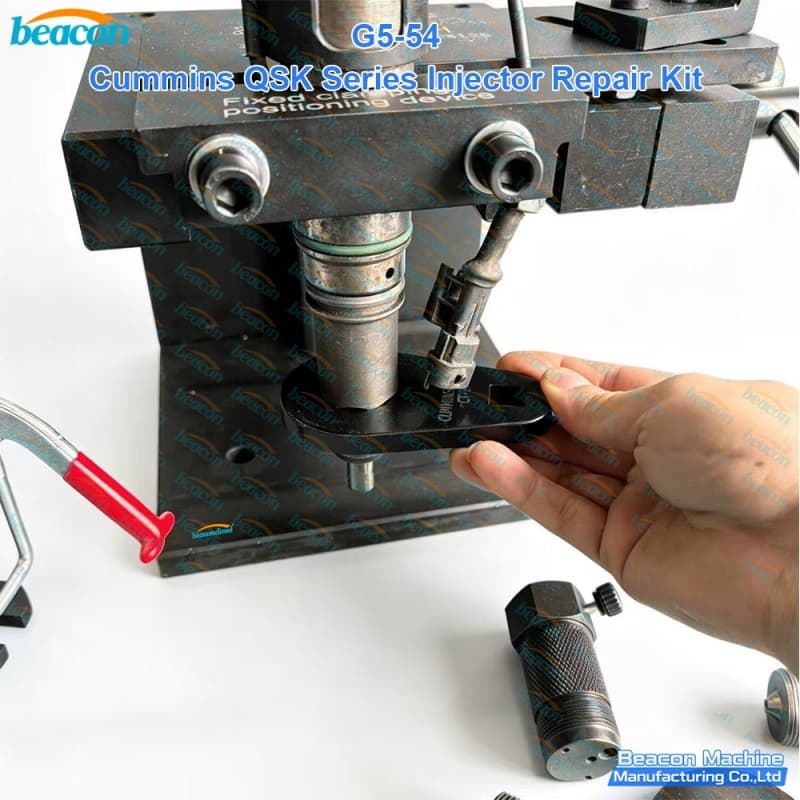

• Zero-Deformation Axial Clamping: Features a dedicated vertical guide fixture that secures large-diameter injector bodies along multiple contact zones, distributing clamping force evenly to prevent barrel scoring or thread binding.

• Forged Chrome-Molybdenum Steel (Cr-Mo): As a professional heavy duty diesel injector overhaul tool, all load-bearing components are hot-forged and vacuum-quenched to HRC 58–62, resisting fatigue under severe workshop usage.

• Streamlined Mining & Marine Overhaul: The specialized layout of this Cummins QSK19 QSK38 QSK60 injector disassembly and assembly tool reduces disassembly cycle times by over 40%, safeguarding expensive internal components from damage.

• Manufacturer Warranty & Technical Support: BEACON MACHINE provides technical torque specifications, operation diagrams, a 12-month manufacturer warranty, and global expedited parts dispatch.

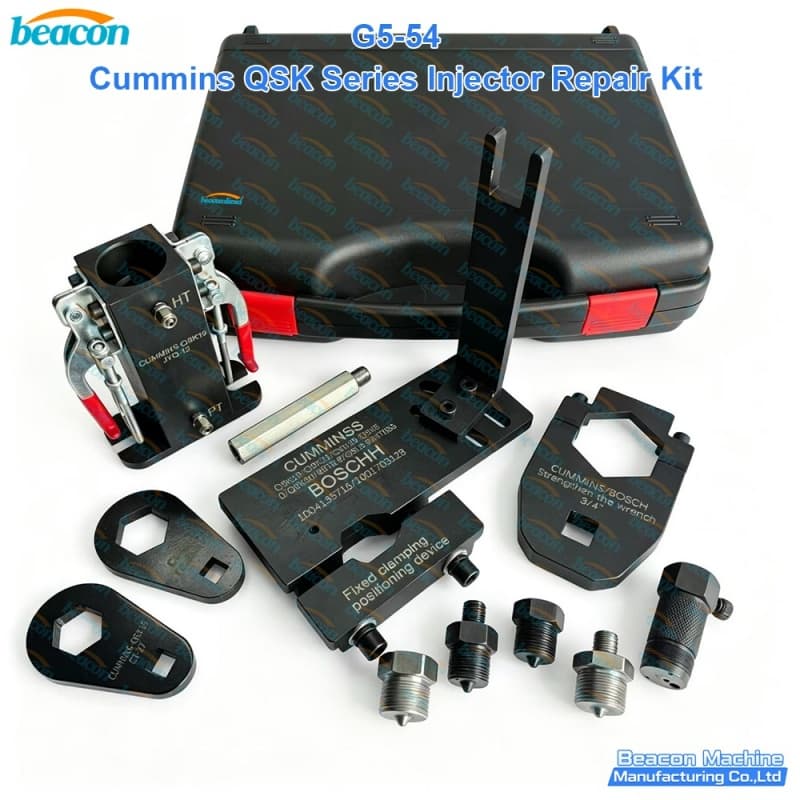

• Heavy-Duty Molded Storage Case: Packaged in an impact-resistant carrying case with precision-cut high-density foam to keep heavy steel fixtures organized, protected, and easily transportable to remote work sites.
